Descriptions
Replaces
QualJet#
Price, USD
|
Image |
Descriptions |
Replaces |
QualJet# |
Price, USD |
|
Actuator Pin | 002226-1 | Q101020 | $13.00 |
|
Biscuit Spacer, 40K | 006881-1 | Q101027-1 | $36.00 |
| Cable Guide Assembly, Left Hand 5X | C-1339-1 | Q101053-1 | $325.00 | |
| Cable Guide Assembly, Right Hand 5X | C-1331-1 | Q101053-2 | $325.00 | |
|
Check Valve Assy, 55K | 010559-3 | Q101296-2 | $650.00 |
| Check Valve Repair Kit, 55K HO | 007137-1 | Q101291 | $89.00 | |
|

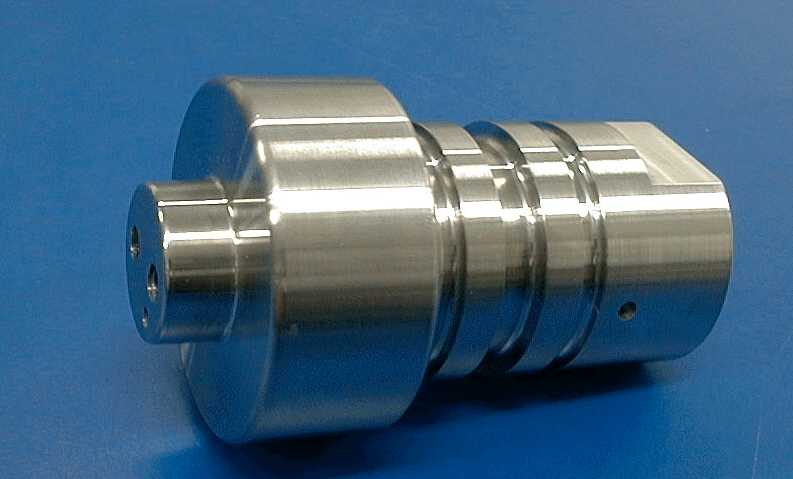

Check Valve, Main Body, 40K | 004383-2 | Q101030-1 | $314.00 |
| Compression Spring | A-1606 | QP-1007 | $3.00 | |
|
End Bell Bushing, 40K | B-1040-1 | Q101043-1 | $22.00 |
|

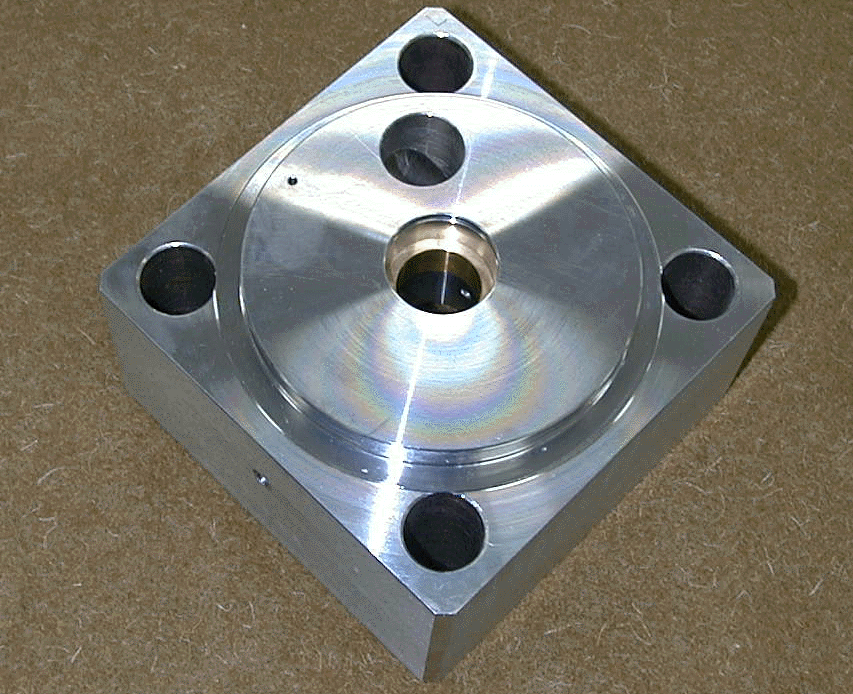

Endbell Assembly, 40K, Left | 007304-2 | Q101042-4 | $1,699.00 |
|
Endbell Assembly, 40K, Right | 007304-1 | Q101042-3 | $1,699.00 |
|
High Pressure Cylinder, 40K | 007038-2 | Q101012-1 | $672.00 |
|
High Pressure Seal, 40K | C-5282-1 | Q101156-1 | $9.00 |
|
Inlet Check Valve Retaining Screw | 004380-1 | Q101014 | $18.50 |
|
Inlet Check Valve Support Assembly (new) | 010564-1 | Q101260 | $29.50 |
|
Inlet Poppet (new) | 010011-1 | Q101259 | $9.90 |
|

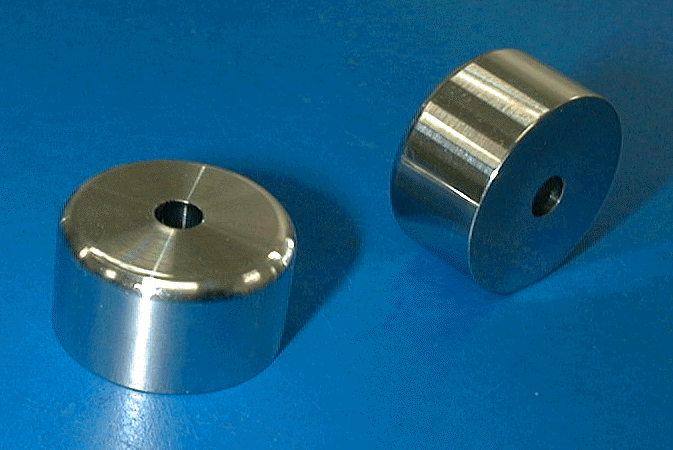

Insert, Check Valve | 004382-1 | Q101031 | $18.50 |
| Low Pressure Seal Kit, 40K | B-1163-2 | Q101295 | $35.70 | |
| Manifold, Single Intensifier | 007290-1 | Q107290 | $1,200.00 | |
| Mechanical Shift Valve | C-2743-1 | Q101022 | $620.00 | |
| O-Ring | A-0275-014 | QP-1006-014 | $2.00 | |
| O-Ring | A-0275-125 | QP-1006-125 | $1.00 | |
|
Outlet Poppet | 005917-1 | Q101032 | $15.90 |
|
Pilot Valve, Mechanical Shift | 006869-1 | Q101021 | $230.00 |
|
Piston Biscuit, 40K | 007201-1 | Q101026-1 | $316.00 |
|
Quick Coupling, Nipple | 004345-1 | Q101052 | $58.00 |
|
Seal Hoop, 40K | 001194-1 | Q101157-1 | $10.00 |
|
Seal Ring Buttress, 40K | B-1465-2 | Q101155-1 | $32.00 |
|
Seal Ring, 55K | B-1465-1 | Q101155-2 | $32.00 |
| Short Block Assembly; 55K | 010558-3 | Q101001 | $11,000.00 | |
| Snap Ring | A-0264-112 | QP-1003-112 | $3.80 | |
| Snap Ring | A-0270-300 | QP-1015-78 | $5.00 | |
| Subplate | 007622 | Q101023 | $520.00 | |
|
Tie Rod | B-1000-2 | Q101005 | $31.00 |
| Ultra High Pressure O-Ring | B-8075-007 | QP-1005-007 | $3.80 | |
| Ultra High Pressure O-Ring, 40K | B-8075-122 | QP-1005-122 | $4.80 | |
| Ultra High Pressure O-Ring, Red | B-8075-006 | QP-1005-006 | $3.00 |
